Paving Installation

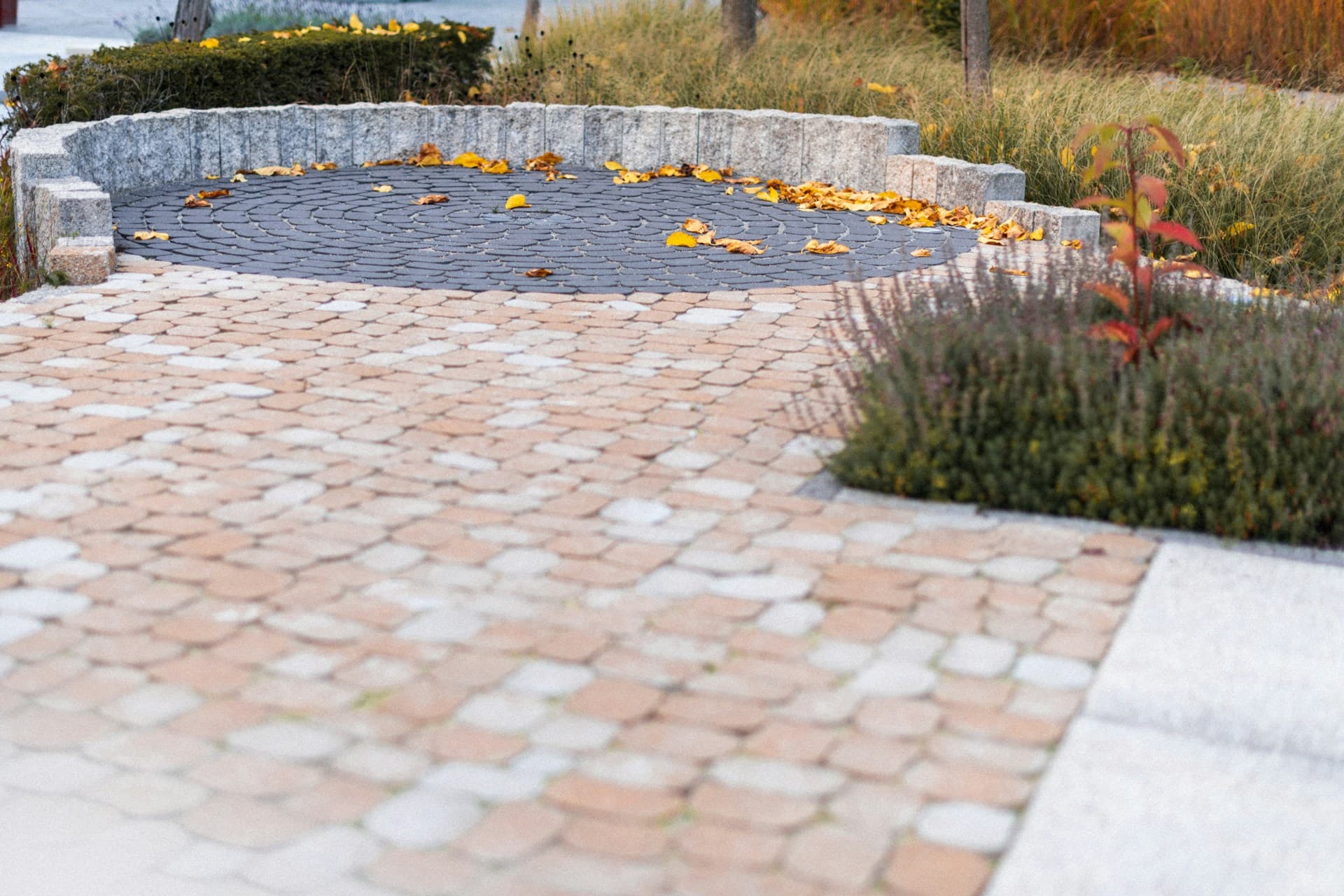

Installation of brick pavers, concrete pavers, and natural stone pavers for driveways, patios, pathways, and pool surrounds. Covers site excavation, base preparation, bedding layer installation, paver laying, cutting, compaction, and joint filling. Includes controls for manual handling of heavy materials, silica dust from paver cutting, whole-body vibration from plate compactors, cement burns, underground service protection (BYDA), and UV/heat exposure for outdoor work. Pre-filled hazards, controls, and risk ratings.
The 2024 engineered stone ban put paver cutting alongside benchtop work on the silicosis watchlist, and the reason is straightforward. Concrete and stone pavers run high in silica content, dry cutting on a residential driveway puts respirable dust into the operator's breathing zone in seconds, and small operators still run the saw dry because wet cutting "makes a mess on the customer's tiles". The workplace exposure standard sits at 0.05 mg/m³ over an eight-hour day. Wet cutting with on-tool local exhaust ventilation, an M-class HEPA vacuum for cleanup and a P2 respirator on every operator within the dust cloud are the controls that stop the silicosis case load growing into paving territory.
Around the saw, the profile of paving work is repetitive movement at extreme load. Pavers run 15 to 30 kilos per unit, hundreds per day, into bedding sand a paver lays kneeling or in a deep squat. Back, knee and shoulder musculoskeletal claims dominate the trade's workers' comp data — knee pads, mechanical paver lifters for stone work, and rotation between cutting and laying through the day are the controls that keep operators in the trade for ten years rather than five. Whole-body and hand-arm vibration from plate compactors over multi-hour sessions adds the HAVS column; double protection (plugs plus muffs) on the noise side. AS 1428.1:2021 governs accessible-path gradients and joint heights — pavers more than 5mm proud of an adjacent unit become trip and disability-discrimination hazards. BYDA referrals before any base-prep excavation, RIIMPO320F or RIIMPO318F where excavator or bobcat work sits in scope, and 10830NAT silica training round out the trade certifications. The crew that runs wet, rotates the lifting and respects the gradient leaves the customer with a driveway that doesn't lift in three years, and an operator who's still on the tools at 50.
What's In Your SWMS
7 Hazards & Controls
Back injuries, shoulder strain, knee damage (bursitis, meniscus tears), repetitive strain injury, muscle tears, herniated discs
Use mechanical delivery of pallets directly to work area to minimise manual transport distance
Use paver carts or trolleys instead of carrying pavers by hand. Use smaller bags (20kg instead of 40kg). Use mechanical screeding where possible.
- Paver cart or trolley for moving pavers from pallet to laying face
- Mini excavator or bobcat for bulk material movement
- Wheelbarrow with pneumatic tyre for sand and crushed rock transport
- Paver suction lifter for large format pavers
- Foam kneeling mat or gel knee pads for laying
- Team lift for items over 20kg
- Position paver pallets within 3m of laying face to reduce carry distance
- Use correct lifting technique - bend knees, keep back straight, hold close to body
- Rotate between tasks (laying, cutting, screeding) every 30-45 minutes to vary posture
- Take 5-minute micro-breaks every 30 minutes during sustained kneeling
- Stretch before work and during breaks - focus on back, knees, and shoulders
- Hydrate regularly - dehydration increases injury risk
Heavy-duty knee pads essential. Work gloves for grip and blister prevention. Steel cap boots for dropped paver protection.
17-Step Work Procedure
Equipment & PPE
Equipment (13)
- Plate compactor (vibrating)
For compacting crushed rock base and bedding pavers after laying. Select appropriate size for job. Check vibration rating and limit operator exposure time.
- Brick saw (wet cutting)
Electric or petrol brick saw with continuous water feed. WET CUTTING MANDATORY for silica dust control. No dry cutting of pavers.
- Angle grinder with diamond blade (wet cutting attachment)
For detailed cuts and curves. Must have water suppression or dust extraction. Never dry cut pavers.
- Wheelbarrows (heavy-duty)
For transporting sand, crushed rock, and pavers within site. Pneumatic tyres for uneven ground.
- Shovels, rakes, and screeding rails
For spreading and levelling bedding sand. Screeding rails for achieving consistent sand depth.
- String lines, pegs, and levels
For establishing falls, grades, and alignment. Laser level recommended for larger areas.
- Rubber mallet
For tapping pavers into position and adjusting levels.
- Stiff broom and/or leaf blower
For sweeping joint filling sand into paver gaps. Blower for final cleanup.
- Edge restraints (plastic or aluminium)
Essential for containing sand-set pavers. Secure with steel spikes at 300mm centres.
- HEPA vacuum (M-class minimum)
For cleanup of cutting dust. Required if any dry residue remains after wet cutting.
- Water supply (hose and tank)
For brick saw water feed, dust suppression, and cement washdown. Minimum 200L tank if no mains water available.
- First aid kit
Include eye wash, burn dressings (for cement burns), wound dressings, and sunburn treatment.
- Underground service locator (CAT and Genny)
For verifying underground service locations before and during excavation. Use in conjunction with BYDA plans.
PPE (8)
- Safety glasses or gogglesAS/NZS 1337.1:2010
Essential during paver cutting and plate compacting. Goggles preferred for wet cutting splash protection.
- P2 respirator (minimum)AS/NZS 1716:2012 (device); AS/NZS 1715:2009 (selection/use/fit testing)
Required during all paver cutting. Fit tested per AS/NZS 1715:2009. AS/NZS 1716 uses P1/P2/P3 classifications (not N95/FFP2 - those are NIOSH and EN 149 respectively). Replace filters as per manufacturer schedule.
- Hearing protection (Class 5)AS/NZS 1270:2002
Required during brick saw, angle grinder, plate compactor, and excavator operation. Class 5 (SLC80 ≥30 dB) for brick saw use.
- Safety footwear (steel cap, non-slip)AS 2210.3:2019
Steel cap essential for dropped paver protection. Non-slip sole for working on sand and uneven surfaces.
- Work gloves (general handling and cement-resistant)AS/NZS 2161.1:2016 (general); AS/NZS 2161.10.1:2024 (chemical/microorganism protection - for cement)
Leather or synthetic for general paver handling per AS/NZS 2161.1. Waterproof cement-resistant gloves (rubber or nitrile) per AS/NZS 2161.10.1:2024 when working with mortar, cement, or grout (cement is alkaline pH 12-13).
- Sun protection (hat, long sleeves, sunscreen)
Wide-brim hat (minimum 7.5cm brim), long-sleeved shirt, SPF 50+ sunscreen applied every 2 hours. UV-rated safety glasses.
- Knee pads (heavy-duty)
Essential for prolonged kneeling during paver laying. Gel or foam type with hard outer shell.
- High-visibility vest or clothingAS 4602.1:2024
Required when plant (excavator, bobcat) is operating on site. Day-only Class D minimum.
Training & Emergency
Competency Requirements
- Construction Induction Card (White Card)training
Required for all workers on construction sites
- Paving Installation Experiencetraining
Demonstrated experience in paver installation including base preparation, laying, cutting, and compaction. Paving is not a separately licensed trade in most Australian states.
- Crystalline Silica Exposure Prevention Trainingtraining
10830NAT Course in Crystalline Silica Exposure Prevention. Required for workers who cut pavers or other silica-containing materials.
- BYDA (Before You Dig) Awarenesstraining
Understanding of BYDA process, plan interpretation, service colour codes, and safe excavation near services. All workers involved in excavation must be briefed.
- Excavator Operation (RIIMPO320F)
Required for any worker operating a mini excavator. Unit of competency RIIMPO320F from a Registered Training Organisation (RTO). Not required if hand excavation only.
- Bobcat / Skid Steer Operation (RIIMPO318F)
Required for any worker operating a bobcat or skid steer loader. Unit of competency RIIMPO318F from an RTO.
- First Aid Certificate
Recommended for at least one team member on site. HLTAID011 Provide First Aid. Important given cement burn and heat stress risks.
- Traffic Management Awareness
Required if work is adjacent to roadways or public footpaths. May need Traffic Management Plan and qualified traffic controller.
Emergency Procedures
UNDERGROUND SERVICE STRIKE (Electrical): Do NOT touch damaged cable. Move all workers clear. Call 000 if sparking or fire. Contact electricity distributor emergency line immediately. Do not resume work until service is made safe.
UNDERGROUND SERVICE STRIKE (Gas): Evacuate area immediately (minimum 50m). Do not use mobile phones or any ignition sources in vicinity. Call 000. Contact gas distributor emergency line. Do not attempt to stop the leak.
CEMENT BURN: These burns worsen over time even after washing. If burn area is larger than palm of hand, or is on face, hands, feet, or genitals, seek emergency medical attention. For burns inside boots, remove boots and wash feet for 20 minutes.
HEAT STROKE: Call 000 immediately. Move person to shade. Remove excess clothing. Cool rapidly with water, ice packs to neck/armpits/groin. Do not give fluids if confused or unconscious. Heat stroke is life-threatening.
SILICA DUST EXPOSURE: If significant exposure occurs (dry cutting, saw water runs out), stop work, move to fresh air, report to supervisor. Worker may require health monitoring.
Everything above, included in your SWMS document.
Get This TemplateWriting a SWMS from scratch?
That's 2-4 hours of research, formatting, and cross-referencing regulations.
We've done the starting work — pick your template, add your details, review.
Or just do this:
- Unlimited documents
- All 70+ templates
- Instant PDF & DOCX
- Cancel anytime
High-Risk Construction Work Categories
Under Australian WHS Regulations (Section 291 - High Risk Construction Work; Chapter 7 Part 7.2 - Noise; Chapter 4 Part 4.4 - Hazardous Manual Tasks), this work is classified as high-risk due to:
- Involves use of powered mobile plant (Mini excavator or bobcat may be used for site excavation and base preparation. Plate compactor is powered mobile plant used for compacting base and pavers.)
- Work on or near energised electrical installations (Excavation for paving base may encounter underground electrical services. BYDA (Before You Dig Australia) enquiry mandatory before any excavation.)
- Work on or near pressurised gas mains or piping (Excavation may encounter underground gas services. BYDA enquiry mandatory. Hand dig within safe zone of located gas services.)
Australian Standards Referenced
National Guidance Documents
- Safe Work Australia - Model Code of Practice: Hazardous Manual Tasks
- Safe Work Australia - Model Code of Practice: Excavation Work
- Safe Work Australia - Crystalline Silica and Silicosis
- Safe Work Australia - Guide to Managing Exposure to Whole-Body Vibration
- Safe Work Australia - Guide to Exposure to Solar UV Radiation
- Before You Dig Australia (BYDA) - Best Practice Guide
Who Needs This SWMS?
This template is designed for the following trades and roles performing paving installation work.
Frequently Asked Questions
Do I need a BYDA enquiry before excavating for paving?
Yes. Before You Dig Australia (BYDA) enquiry is mandatory before any excavation work, including paving base preparation. Submit a free enquiry at www.byda.com.au at least 3 business days before planned excavation. BYDA plans identify underground electrical, gas, water, sewer, and telecommunications services. Failure to obtain BYDA plans before excavating can result in service strikes, serious injury, and prosecution.
Can pavers be cut dry on site?
No. Dry cutting of concrete, clay, or stone pavers is prohibited under WHS regulations. Cutting these materials generates respirable crystalline silica dust which causes silicosis and lung cancer. Wet cutting with continuous water suppression is mandatory. A paver splitter (guillotine) can be used for straight cuts on some paver types as it generates minimal dust.
What training is needed for paving work?
Minimum requirements include: White Card (construction induction) for construction sites, 10830NAT Crystalline Silica Exposure Prevention training for workers who cut pavers, BYDA awareness for workers involved in excavation, and RIIMPO320F/RIIMPO318F competency for excavator or bobcat operators. Paving itself is not a separately licensed trade in most Australian states.
How deep do you excavate for paving?
Typical excavation depth is 200-300mm for residential paving: 100-150mm crushed rock base, 25-40mm bedding sand, and 40-80mm paver thickness. Driveways require deeper bases (150-200mm crushed rock) for vehicle traffic loads. Always check BYDA plans before excavating - residential services can be as shallow as 300mm.
What are the main hazards in paving work?
This SWMS covers seven key hazards: manual handling (heavy pavers, repetitive kneeling), silica dust from paver cutting, whole-body vibration from plate compactors, cement/mortar burns (pH 12-13), underground service strikes during excavation, UV/heat exposure for outdoor work, and noise exposure from brick saws and compactors.
Is a plate compactor safe to use?
Plate compactors transmit whole-body and hand-arm vibration that can cause spinal damage, joint injuries, and hand-arm vibration syndrome (HAVS) with prolonged use. Controls include: limiting continuous operation to 1 hour then taking a 15-minute break, rotating operators, using compactors with anti-vibration handles, maintaining equipment properly, and using rubber paver protection mats. Workers should report tingling, numbness, or white fingers immediately.
What PPE is required for paving installation?
Minimum PPE includes: P2 respirator during paver cutting, Class 5 hearing protection for brick saw use, safety glasses, steel cap non-slip boots, work gloves (rubber gloves for cement), knee pads, sun protection (wide-brim hat, long sleeves, SPF 50+ sunscreen), and high-visibility vest when plant is operating.
How do you prevent cement burns during paving?
Wet Portland cement (pH 12-13) causes chemical burns that may not be felt immediately. Prevention: wear waterproof rubber gloves when handling cement or mortar, wear waterproof knee pads, never kneel in wet mortar, wash cement off skin immediately with water for 20 minutes, remove contaminated clothing and footwear straight away, and use sand-set or polymeric sand methods where possible to avoid cement entirely.
Do I need a licence to lay pavers in Australia?
Paving is generally not a separately licensed trade in Australia. However, if the work includes structural elements, excavation near services, or exceeds certain value thresholds, additional licensing may apply. Stonemason licences are required in NSW, VIC, and QLD for natural stone work above value thresholds. Plant operators need competency tickets (RIIMPO320F for excavators, RIIMPO318F for bobcats).
What sun protection is needed for outdoor paving work?
Australian outdoor workers have 10x greater skin cancer risk. Required protection: wide-brim hat (minimum 7.5cm brim), long-sleeved UPF 50+ shirt, SPF 50+ broad-spectrum sunscreen applied every 2 hours, UV-rated safety glasses. Schedule heavy physical work outside 10am-2pm peak UV. Mandatory hydration: 250mL water every 15-20 minutes in hot conditions. Rest in shade for 10 minutes every hour when temperature exceeds 35°C.
